پی سی پنل

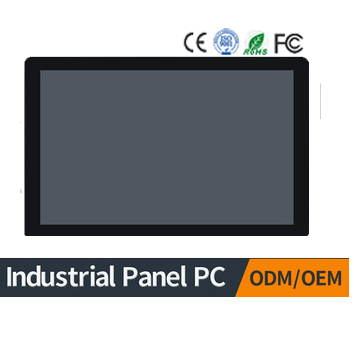

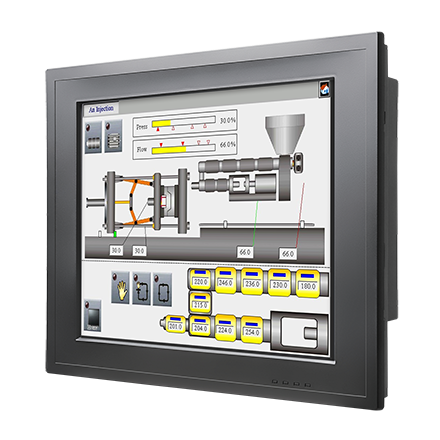

pc panel یک وسیله الکترونیکی است که تمام ملزومات یک کامپیوتر را درون یک case دارد که با یک نمایشگر LCD همراه است.

Pc Panel ها اغلب برای تعامل با کاربر دارای صفحه لمسی هستند.

case این pc ها طوری طراحی شده که قابل نصب بر روی پنل های استاندارد هستند.



ویژگی های فنی:

12inch embedded touch Panel PC

Black color

Front panel IP65 waterproof

.PC main specs

CPU:Intel® Celeron J1900, quad core, 2.0GHz, fanless

Chipset:IntelValleyView SSA-CUnit

RAM:4GB DDR3

Hard Drive Capacity:32H SSD

Graphics:CPU Integrated graphics card and support

1080p HD photo

.LCD panel main specs

Touch type:5wires resistive touch

Resolution:1024x768

( Brightness:400cd/m2 ( Typ

 Contrast:1000:1

Wifi is included

,interfaces:2xUSB 2.0 , 2xUSB 3.0

RJ45x1,RS232x2, 1xVGA/HDMI/Audio  OUT/MIC

IN/POWER DC






InDoor



Model





NSI07



7 inch embedded touch monitor
Resolution: 1024*600(16:9)
Function: VGA+HDMI+DVI+USB Touch
Brightness: 300nits
Contrast ratio: 800:1
Touch type: 10 point Capacitive Touch
12-24V wide voltage

NSI101



Front panel IP65 waterproof
Panel: 10.1'' LCD, flat panel
Display Ratio: 16:9
Function: VGA+HDMI+DVI+USB for touch
Resolution: 1366*768
Brightness: 300 cd/m2
Contrast ratio: 800:1
Touch type: 10 point capacitive touch
12-24V wide voltage

NS156



Front panel IP65 waterproof
Panel: 15'' LCD, flat panel
Display Ratio: 4:3
Function: VGA+HDMI+DVI+USB for touch
Resolustion: 1024*768
Brightness: 300 cd/m2
Contrast ratio: 1000:1
Touch type: 10 point capacitive touch
12-24V wide voltage








OutDoor

Model





NSO07

7 inch embedded capacitive touch monitor
Material: aluminium alloy+ back high strength rolled steel
Front panel IP65 waterproof
Resolution:1024*600
Brightness: 1000 nits, sunlight readable
Aspect ratio: 16:9
Funtions: HDMI+VGA+USB touch
Touch type: 10 point capacitive touch
Working voltage: DC 12V

NSO101

Front panel IP65 waterproof monitor
Panel:10.1'' LCD ,flat panel
Display Ratio:16:10
Function: VGA+DVI+HDMI+Touch USB
Resolution:1280*800
Brightness: 1000 cd/m2 sunlight readable
Contrast ratio: 1000:1
Touch type: 10 point Capacitive Touch
12V DC

NSO156

Front panel IP65 waterproof
Panel: 15.6'' LCD, flat panel
Display Ratio: 16:9
Function: VGA+HDMI+DVI+USB for touch
Resolution: 1920X1080
Brightness: 1000 cd/m2, sunlight readable
Contrast ratio: 1000:1
Touch type: 10 point capacitive touch
